transition node (base class) More...
#include <glvertex_nodes.h>

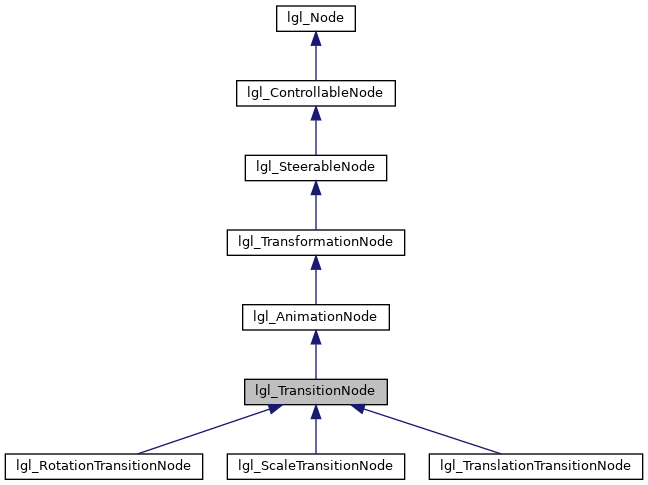

Inheritance diagram for lgl_TransitionNode:
Public Types | |
| enum | lgl_transition_enum |
| transition style | |
| enum | lgl_animation_steer_mode_enum |
| animation steer mode enum | |
| enum | lgl_control_mode_enum |
| control mode enum | |
| enum | lgl_export_enum |
| scene graph export modes | |
Public Member Functions | |
| lgl_TransitionNode (double delta, const vec3 &vector, const std::string &id="", lgl_Node *node=NULL) | |
| ctor | |
| virtual std::string | getClassId () const |
| get the class id | |
| bool | enabled () const |
| is the node enabled? | |
| bool | disabled () const |
| is the node disabled? | |
| void | enable (bool yes=true) |
| enable the node | |
| void | disable (bool yes=true) |
| disable the node | |
| void | toggle () |
| toggle the node | |
| virtual void | pause (bool yes=true) |
| pause the animation | |
| virtual void | resume (bool yes=true) |
| resume the animation | |
| virtual void | setSpeedup (double speedup=1) |
| set the animation speedup | |
| virtual void | control (bool override=true) |
| control the node as specified by the control mode | |
| virtual void | steer (double level, bool override=true) |
| apply the steer level as specified by the steer mode | |
| lgl_transition_enum | getTransitionStyle () const |
| get transition style | |
| void | setTransitionStyle (lgl_transition_enum style) |
| set transition style | |
| virtual void | finish () |
| finish ongoing transition | |
| double | getDelta () const |
| get the animation delta | |
| vec3 | getVector () const |
| get the animation vector | |
| double | getVelocity () const |
| get the animation velocity | |
| double | getLimit () const |
| get the animation limit | |
| void | stopOnLimit () |
| stop on animation limit | |
| bool | getStopOnLimit () const |
| get stop on animation limit | |
| void | signalOnStop () |
| signal on stop | |
| bool | getSignalOnStop () const |
| get signal on stop | |
| double | getAcceleration () const |
| get the animation acceleration | |
| double | getReverse () const |
| get the reverse acceleration after limit has been reached | |
| double | animation () const |
| get the actual animation state | |
| void | rewind (double animation=0) |
| rewind the animation | |
| void | direction (bool forward) |
| set the direction of the animation | |
| void | reverse () |
| reverse the animation | |
| void | forward (double delta) |
| move the animation forward | |
| void | backward (double delta) |
| move the animation backward | |
| virtual bool | paused () const |
| is the animation paused? | |
| virtual double | speedup () |
| get the animation speedup | |
| lgl_animation_steer_mode_enum | getSteerMode () const |
| get the steer mode | |
| void | setSteerMode (lgl_animation_steer_mode_enum mode) |
| set the steer mode | |
| virtual void | restartAll (double animation=0) |
| restart all animations | |
| virtual void | pauseAll (bool yes=true) |
| pause all animations | |
| virtual void | speedupAll (double speedup=1) |
| speedup all animations | |
| vec3 | transform (const vec3 &p) const |
| transform a point | |
| vec4 | transform (const vec4 &p) const |
| transform a point | |
| mat4 | getTransformation () const |
| get the transformation matrix | |
| void | setTransformation (const mat4 &m) |
| set the transformation matrix | |
| void | translate (const vec3 &v) |
| set the transformation matrix (translation) | |
| void | translate (double x, double y, double z) |
| set the transformation matrix (translation) | |
| void | rotate (double angle, const vec3 &v) |
| set the transformation matrix (rotation) | |
| void | rotate (double angle, double x, double y, double z) |
| set the transformation matrix (rotation) | |
| void | scale (double c) |
| set the transformation matrix (scale) | |
| void | scale (double x, double y, double z, double w=1) |
| set the transformation matrix (scale) | |
| void | scale (const vec4 &c) |
| set the transformation matrix (scale) | |
| lgl_control_mode_enum | getControlMode () const |
| get the control mode | |
| void | setControlMode (lgl_control_mode_enum mode) |
| set the control mode | |
| virtual bool | stateless () const |
| is the node stateless? | |
| std::string | getId () const |
| get the node identifier | |
| void | setId (const std::string &id="") |
| set the node identifier | |
| std::string | getAltId () const |
| get the alternate node identifier | |
| void | setAltId (const std::string &id="") |
| set the alternate node identifier | |
| unsigned int | children () const |
| get the number of children of the node | |
| bool | leaf () const |
| is the node a leaf? | |
| unsigned int | references () const |
| get the number of references to the node | |
| bool | shared () const |
| is the node shared? | |
| lgl_Node * | get (unsigned int i=0) const |
| get a child node | |
| template<class T > | |
| T * | add (T *node) |
| add a child node with a specific type | |
| void | remove (unsigned int i=0) |
| remove a child from the node | |
| void | replace (lgl_Node *node, unsigned int i=0) |
| replace a child of the node | |
| lgl_Node * | take (unsigned int i=0) |
| unlink a child and take ownership | |
| void | link (lgl_Node *node) |
| add the links of a node | |
| void | unlink () |
| remove the links of the node | |
| virtual bool | checkForCycles () |
| check for graph cycles | |
| bool | shown () const |
| is the node shown? | |
| bool | hidden () const |
| is the node hidden? | |
| void | show (bool yes=true) |
| show the node and its children | |
| void | hide (bool yes=true) |
| hide the node and its children | |
| virtual lgl_Node * | find (const std::string &id) |
| find a node with a specific identifier | |
| template<class T > | |
| T * | find () |
| find a node with a specific type | |
| template<class T > | |
| T * | find (const std::string &id) |
| find a node with a specific identifier and type | |
| void | renderSceneGraph (double dt=0) |
| render and update the entire scene subgraph | |
| void | drawSceneGraph (vec4 color=vec4(1)) |
| draw the entire scene subgraph without updating | |
| void | drawSceneGraph (const mat4 &m) |
| draw the entire scene subgraph without updating | |
| void | preupdateSceneGraph (double dt) |
| pre-update the entire scene subgraph | |
| void | updateSceneGraph (double dt) |
| update the entire scene subgraph | |
| virtual void | getBoundingBox (vec3 &bboxmin, vec3 &bboxmax) |
| get the bounding box of the entire subgraph More... | |
| double | getBoundingSphere (vec3 ¢er) |
| get the bounding sphere of the entire subgraph More... | |
| vec3 | getCenter () |
| get the bounding box center of the entire subgraph | |
| vec3 | getExtent () |
| get the bounding box extent of the entire subgraph | |
| double | getRadius () |
| get the bounding sphere radius of the entire subgraph More... | |
| double | getNorm () |
| get the bounding sphere norm of the entire subgraph More... | |
| virtual std::vector< vec4 > | getVertexCoordinates (mat4 trans=mat4()) |
| void | getExactBoundingBox (vec3 &bboxmin, vec3 &bboxmax) |
| get the exact bounding box of the entire subgraph More... | |
| lglVBO * | pickSceneGraph (vec3 origin, vec3 direction, double mindist=0) |
| pick the entire scene subgraph | |
| bool | hasTransparency () |
| check the entire subgraph whether or not it contains semi-transparent geometry | |
| virtual unsigned int | countAll () |
| count all nodes (count multiply linked nodes) | |
| virtual unsigned int | countAllOnce () |
| count all nodes (count multiply linked nodes once) | |
| virtual unsigned int | countAllPrimitives () |
| count all primitives | |
| unsigned int | countAllVertices () |
| count all vertices | |
| virtual bool | ordered () const |
| is the node ordered? | |
| bool | convertable () const |
| is the node convertable? | |
| bool | cloneable () const |
| is the node cloneable? | |
| bool | optimizable () const |
| is the node optimizable? | |
| virtual void | optimizeAll () |
| optimize all nodes | |
| virtual void | finishAll () |
| finish all transitions | |
| std::string | exportAll (lgl_export_enum mode=LGL_EXPORT_NODES, int indentation=0, int increment=3) |
| export all nodes | |
| void | exportNodes (std::string filename) |
| export graph nodes | |
| void | exportGraph (std::string filename) |
| export link graph | |
| void | exportCommands (std::string filename) |
| export graphics commands | |
| bool | saveObj (std::string filename) |
| save into OBJ file | |
Static Public Member Functions | |
| static GL * | getGL () |
| get the scene graph GL singleton | |
Protected Member Functions | |
| virtual void | update (double dt) |
| reimplement this method to update a node | |
| virtual mat4 | animate (double animation, const vec3 &vector)=0 |
| to be implemented for a particular type of animation | |
| virtual void | render () |
| reimplement this method to render a node | |
| virtual void | pick () |
| reimplement this method to pick a node | |
| lgl_Node * | add_node (lgl_Node *node) |
| add a child to the node | |
Detailed Description
transition node (base class)
a transition node performs a single continuous transformation operation and then stops after reaching a certain transformation limit
- linear and non-linear transition styles are supported via setTransitionStyle()
Member Function Documentation
◆ getBoundingBox()
get the bounding box of the entire subgraph
- the bounding box is invalid if a maximum component is less than the minimum component
Reimplemented in lgl_SubgraphNode.
◆ getBoundingSphere()
|
inlineinherited |
get the bounding sphere of the entire subgraph
- returns the radius of the bounding sphere
- the bounding sphere is invalid if the radius is zero
◆ getExactBoundingBox()
get the exact bounding box of the entire subgraph
- this is a computationally expensive operation
◆ getNorm()
|
inlineinherited |
get the bounding sphere norm of the entire subgraph
- zero norm means that the subgraph does not contain valid geometry
◆ getRadius()
|
inlineinherited |
get the bounding sphere radius of the entire subgraph
- zero radius means that the subgraph does not contain valid geometry
◆ getVertexCoordinates()
|
inlinevirtualinherited |
- this is a computationally expensive operation
Reimplemented in lgl_SubgraphNode.
The documentation for this class was generated from the following file:
