light source node More...

#include <glvertex_nodes.h>

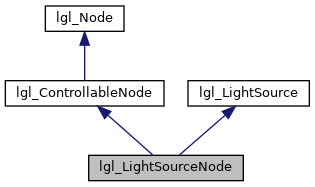

Inheritance diagram for lgl_LightSourceNode:

[legend]

Public Types
enum	lgl_control_mode_enum
	control mode enum

enum	lgl_export_enum
	scene graph export modes

Public Member Functions
	lgl_LightSourceNode (vec4f light=vec4f(0, 0, 1, 0), bool camera_light=true, vec3f Ia=vec3f(1), vec3f Id=vec3f(1), vec3f Is=vec3f(1), vec3f falloff=vec3f(1, 0, 0), const std::string &id="", lgl_Node *node=NULL)
	ctor

virtual std::string	getClassId () const
	get the class id

virtual void	control (bool override=true)
	control the node as specified by the control mode

lgl_control_mode_enum	getControlMode () const
	get the control mode

void	setControlMode (lgl_control_mode_enum mode)
	set the control mode

virtual bool	stateless () const
	is the node stateless?

std::string	getId () const
	get the node identifier

void	setId (const std::string &id="")
	set the node identifier

std::string	getAltId () const
	get the alternate node identifier

void	setAltId (const std::string &id="")
	set the alternate node identifier

unsigned int	children () const
	get the number of children of the node

bool	leaf () const
	is the node a leaf?

unsigned int	references () const
	get the number of references to the node

bool	shared () const
	is the node shared?

lgl_Node *	get (unsigned int i=0) const
	get a child node

template<class T >
T *	add (T *node)
	add a child node with a specific type

void	remove (unsigned int i=0)
	remove a child from the node

void	replace (lgl_Node *node, unsigned int i=0)
	replace a child of the node

lgl_Node *	take (unsigned int i=0)
	unlink a child and take ownership

void	link (lgl_Node *node)
	add the links of a node

void	unlink ()
	remove the links of the node

virtual bool	checkForCycles ()
	check for graph cycles

bool	enabled () const
	is the node enabled?

bool	disabled () const
	is the node disabled?

void	enable (bool yes=true)
	enable the node

void	disable (bool yes=true)
	disable the node

void	toggle ()
	toggle the node

bool	shown () const
	is the node shown?

bool	hidden () const
	is the node hidden?

void	show (bool yes=true)
	show the node and its children

void	hide (bool yes=true)
	hide the node and its children

virtual lgl_Node *	find (const std::string &id)
	find a node with a specific identifier

template<class T >
T *	find ()
	find a node with a specific type

template<class T >
T *	find (const std::string &id)
	find a node with a specific identifier and type

void	renderSceneGraph (double dt=0)
	render and update the entire scene subgraph

void	drawSceneGraph (vec4 color=vec4(1))
	draw the entire scene subgraph without updating

void	drawSceneGraph (const mat4 &m)
	draw the entire scene subgraph without updating

void	preupdateSceneGraph (double dt)
	pre-update the entire scene subgraph

void	updateSceneGraph (double dt)
	update the entire scene subgraph

virtual void	getBoundingBox (vec3 &bboxmin, vec3 &bboxmax)
	get the bounding box of the entire subgraph More...

double	getBoundingSphere (vec3 &center)
	get the bounding sphere of the entire subgraph More...

vec3	getCenter ()
	get the bounding box center of the entire subgraph

vec3	getExtent ()
	get the bounding box extent of the entire subgraph

double	getRadius ()
	get the bounding sphere radius of the entire subgraph More...

double	getNorm ()
	get the bounding sphere norm of the entire subgraph More...

virtual std::vector< vec4 >	getVertexCoordinates (mat4 trans=mat4())

void	getExactBoundingBox (vec3 &bboxmin, vec3 &bboxmax)
	get the exact bounding box of the entire subgraph More...

lglVBO *	pickSceneGraph (vec3 origin, vec3 direction, double mindist=0)
	pick the entire scene subgraph

bool	hasTransparency ()
	check the entire subgraph whether or not it contains semi-transparent geometry

virtual unsigned int	countAll ()
	count all nodes (count multiply linked nodes)

virtual unsigned int	countAllOnce ()
	count all nodes (count multiply linked nodes once)

virtual unsigned int	countAllPrimitives ()
	count all primitives

unsigned int	countAllVertices ()
	count all vertices

virtual bool	ordered () const
	is the node ordered?

bool	convertable () const
	is the node convertable?

bool	cloneable () const
	is the node cloneable?

bool	optimizable () const
	is the node optimizable?

virtual void	optimizeAll ()
	optimize all nodes

virtual void	restartAll (double animation=0)
	restart all animations

virtual void	pauseAll (bool yes=true)
	pause all animations

virtual void	speedupAll (double speedup=1)
	speedup all animations

virtual void	finishAll ()
	finish all transitions

std::string	exportAll (lgl_export_enum mode=LGL_EXPORT_NODES, int indentation=0, int increment=3)
	export all nodes

void	exportNodes (std::string filename)
	export graph nodes

void	exportGraph (std::string filename)
	export link graph

void	exportCommands (std::string filename)
	export graphics commands

bool	saveObj (std::string filename)
	save into OBJ file

void	setDirection (vec3f direction, bool camera_light=true)
	set light direction

void	setPosition (vec3f position, bool camera_light=true)
	set light position

void	setLightVector (vec4f light, bool camera_light=true)
	set light vector

vec3f	getLightVector () const
	get light vector

bool	isCameraLight () const
	is the light source a camera light?

void	setAmbientColor (vec3f color)
	set ambient light source intensity

vec3f	getAmbientColor () const
	get ambient light source intensity

void	setDiffuseColor (vec3f color)
	set diffuse light source intensity

vec3f	getDiffuseColor () const
	get diffuse light source intensity

void	setSpecularColor (vec3f color)
	set specular light source intensity

vec3f	getSpecularColor () const
	get specular light source intensity

void	setIntensityFalloff (vec3f falloff)
	set intensity falloff

vec3f	getIntensityFalloff () const
	get intensity falloff

void	setLightSourceParameters (vec3f Ia=vec3f(1), vec3f Id=vec3f(1), vec3f Is=vec3f(1), vec3f falloff=vec3f(1, 0, 0))
	set the light source parameters

void	getLightSourceParameters (vec3f &Ia, vec3f &Id, vec3f &Is, vec3f &falloff) const
	get the light source parameters

void	begin ()
	activate light source

void	end ()
	deactivate light source

Static Public Member Functions
static GL *	getGL ()
	get the scene graph GL singleton

Protected Member Functions
virtual void	render ()
	reimplement this method to render a node

lgl_Node *	add_node (lgl_Node *node)
	add a child to the node

virtual void	update (double dt)
	reimplement this method to update a node

virtual void	pick ()
	reimplement this method to pick a node

Detailed Description

light source node

a light node stores the lighting parameters of a single directional or positional light source

Member Function Documentation

◆ getBoundingBox()

virtual void lgl_Node::getBoundingBox	(	vec3 &	bboxmin,
		vec3 &	bboxmax
	)

inlinevirtualinherited

get the bounding box of the entire subgraph

the bounding box is invalid if a maximum component is less than the minimum component

Reimplemented in lgl_SubgraphNode.

◆ getBoundingSphere()

double lgl_Node::getBoundingSphere ( vec3 & center )

inlineinherited

get the bounding sphere of the entire subgraph

returns the radius of the bounding sphere
the bounding sphere is invalid if the radius is zero

◆ getExactBoundingBox()

void lgl_Node::getExactBoundingBox	(	vec3 &	bboxmin,
		vec3 &	bboxmax
	)

inlineinherited

get the exact bounding box of the entire subgraph

this is a computationally expensive operation

◆ getNorm()

double lgl_Node::getNorm ( )

inlineinherited

get the bounding sphere norm of the entire subgraph

zero norm means that the subgraph does not contain valid geometry

◆ getRadius()

double lgl_Node::getRadius ( )

inlineinherited

get the bounding sphere radius of the entire subgraph

zero radius means that the subgraph does not contain valid geometry

◆ getVertexCoordinates()

virtual std::vector<vec4> lgl_Node::getVertexCoordinates ( mat4 trans = mat4() )

inlinevirtualinherited

this is a computationally expensive operation

Reimplemented in lgl_SubgraphNode.

The documentation for this class was generated from the following file:

glvertex_nodes.h
