glslmath.h File Reference

#include <math.h>
#include <float.h>
#include <assert.h>
#include <stdio.h>
#include <stdlib.h>
#include <ctype.h>
#include <string>
#include <iostream>
#include <iomanip>
#include <vector>
#include <limits>

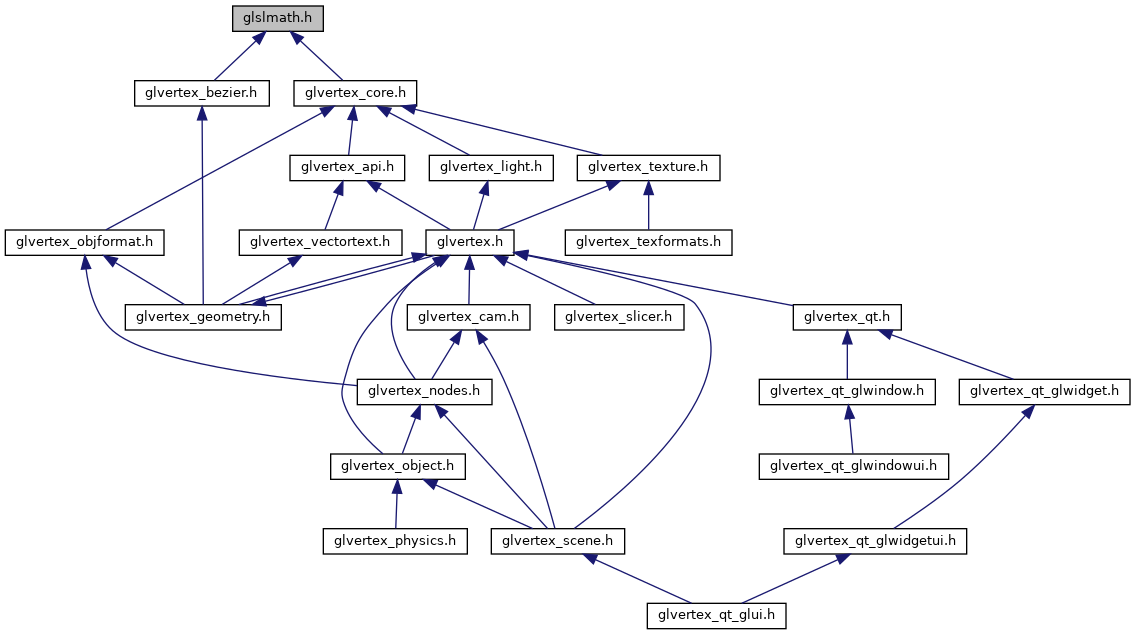

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	vec2
	2D double vector More...
class	vec2f
	2D float vector More...
class	vec3
	3D double vector More...
class	vec3f
	3D float vector More...
class	vec4
	4D double vector More...
class	vec4f
	4D float vector More...
class	mat2
	2x2 double matrix More...
class	mat2f
	2x2 float matrix More...
class	mat3
	3x3 double matrix More...
class	mat3f
	3x3 float matrix More...
class	mat4
	4x4 double matrix More...
class	mat4f
	4x4 float matrix More...
class	quat
	quaternion More...
class	glslnoise::perlinnoise
	perlin noise More...

Functions
vec2	operator+ (const vec2 &a, const vec2 &b)
	addition of two vectors
vec2	operator- (const vec2 &a, const vec2 &b)
	subtraction of two vectors
vec2	operator- (const vec2 &v)
	negation of a vector
vec2	operator* (const double a, const vec2 &b)
	left-hand side scalar multiplication
vec2	operator* (const vec2 &a, const double b)
	right-hand side scalar multiplication
vec2	operator/ (const vec2 &a, const double b)
	right-hand side scalar division
vec2	operator* (const vec2 &a, const vec2 &b)
	component-wise multiplication
bool	operator== (const vec2 &a, const vec2 &b)
	comparison
bool	operator!= (const vec2 &a, const vec2 &b)
	negated comparison
double	length (const vec2 &v)
	get vector length
double	norm (const vec2 &v)
	get squared vector length
vec2	normalize (const vec2 &v)
	normalization to unit length
double	dot (const vec2 &a, const vec2 &b)
	inner product
vec2	lerp (double w, const vec2 &a, const vec2 &b)
	linear interpolation
vec2	mix (const vec2 &a, const vec2 &b, double w)
	linear interpolation (GLSL-style)
std::ostream &	operator<< (std::ostream &out, const vec2 &v)
	output operator
vec2f	operator+ (const vec2f &a, const vec2f &b)
	addition of two vectors
vec2f	operator- (const vec2f &a, const vec2f &b)
	subtraction of two vectors
vec2f	operator- (const vec2f &v)
	negation of a vector
vec2f	operator* (const float a, const vec2f &b)
	left-hand side scalar multiplication
vec2f	operator* (const vec2f &a, const float b)
	right-hand side scalar multiplication
vec2f	operator/ (const vec2f &a, const float b)
	right-hand side scalar division
vec2f	operator* (const vec2f &a, const vec2f &b)
	component-wise multiplication
bool	operator== (const vec2f &a, const vec2f &b)
	comparison
bool	operator!= (const vec2f &a, const vec2f &b)
	negated comparison
std::ostream &	operator<< (std::ostream &out, const vec2f &v)
	output operator
vec3	operator+ (const vec3 &a, const vec3 &b)
	addition of two vectors
vec3	operator- (const vec3 &a, const vec3 &b)
	subtraction of two vectors
vec3	operator- (const vec3 &v)
	negation of a vector
vec3	operator* (const double a, const vec3 &b)
	left-hand side scalar multiplication
vec3	operator* (const vec3 &a, const double b)
	right-hand side scalar multiplication
vec3	operator/ (const vec3 &a, const double b)
	right-hand side scalar division
vec3	operator* (const vec3 &a, const vec3 &b)
	component-wise multiplication
bool	operator== (const vec3 &a, const vec3 &b)
	comparison
bool	operator!= (const vec3 &a, const vec3 &b)
	negated comparison
double	length (const vec3 &v)
	get vector length
double	norm (const vec3 &v)
	get squared vector length
vec3	normalize (const vec3 &v)
	normalization to unit length
double	dot (const vec3 &a, const vec3 &b)
	inner product
vec3	cross (const vec3 &a, const vec3 &b)
	cross product
vec3	lerp (double w, const vec3 &a, const vec3 &b)
	linear interpolation
vec3	mix (const vec3 &a, const vec3 &b, double w)
	linear interpolation (GLSL-style)
vec3	reflect (const vec3 &v, const vec3 &n)
	reflect incident vector at normalized surface normal
std::ostream &	operator<< (std::ostream &out, const vec3 &v)
	output operator
vec3f	operator+ (const vec3f &a, const vec3f &b)
	addition of two vectors
vec3f	operator- (const vec3f &a, const vec3f &b)
	subtraction of two vectors
vec3f	operator- (const vec3f &v)
	negation of a vector
vec3f	operator* (const float a, const vec3f &b)
	left-hand side scalar multiplication
vec3f	operator* (const vec3f &a, const float b)
	right-hand side scalar multiplication
vec3f	operator/ (const vec3f &a, const float b)
	right-hand side scalar division
vec3f	operator* (const vec3f &a, const vec3f &b)
	component-wise multiplication
bool	operator== (const vec3f &a, const vec3f &b)
	comparison
bool	operator!= (const vec3f &a, const vec3f &b)
	negated comparison
std::ostream &	operator<< (std::ostream &out, const vec3f &v)
	output operator
vec4	operator+ (const vec4 &a, const vec4 &b)
	addition of two vectors
vec4	operator- (const vec4 &a, const vec4 &b)
	subtraction of two vectors
vec4	operator- (const vec4 &v)
	negation of a vector
vec4	operator* (const double a, const vec4 &b)
	left-hand side scalar multiplication
vec4	operator* (const vec4 &a, const double b)
	right-hand side scalar multiplication
vec4	operator/ (const vec4 &a, const double b)
	right-hand side scalar division
vec4	operator* (const vec4 &a, const vec4 &b)
	component-wise multiplication
bool	operator== (const vec4 &a, const vec4 &b)
	comparison
bool	operator!= (const vec4 &a, const vec4 &b)
	negated comparison
double	length (const vec4 &v)
	get vector length
double	norm (const vec4 &v)
	get squared vector length
vec4	normalize (const vec4 &v)
	normalization to unit length
double	dot (const vec4 &a, const vec4 &b)
	inner product
vec4	cross (const vec4 &a, const vec4 &b)
	cross product
vec4	lerp (double w, const vec4 &a, const vec4 &b)
	linear interpolation
vec4	mix (const vec4 &a, const vec4 &b, double w)
	linear interpolation (GLSL-style)
vec4	reflect (const vec4 &v, const vec4 &n)
	reflect incident vector at normalized surface normal
std::ostream &	operator<< (std::ostream &out, const vec4 &v)
	output operator
vec4f	operator+ (const vec4f &a, const vec4f &b)
	addition of two vectors
vec4f	operator- (const vec4f &a, const vec4f &b)
	subtraction of two vectors
vec4f	operator- (const vec4f &v)
	negation of a vector
vec4f	operator* (const float a, const vec4f &b)
	left-hand side scalar multiplication
vec4f	operator* (const vec4f &a, const float b)
	right-hand side scalar multiplication
vec4f	operator/ (const vec4f &a, const float b)
	right-hand side scalar division
vec4f	operator* (const vec4f &a, const vec4f &b)
	component-wise multiplication
bool	operator== (const vec4f &a, const vec4f &b)
	comparison
bool	operator!= (const vec4f &a, const vec4f &b)
	negated comparison
std::ostream &	operator<< (std::ostream &out, const vec4f &v)
	output operator
mat2	operator+ (const mat2 &m1, const mat2 &m2)
	addition of two matrices
mat2	operator* (const mat2 &m1, const mat2 &m2)
	multiplication of two matrices
bool	operator== (const mat2 &a, const mat2 &b)
	comparison
bool	operator!= (const mat2 &a, const mat2 &b)
	negated comparison
vec2	operator* (const mat2 &m, const vec2 &v)
	right-hand side matrix/vector multiplication
std::ostream &	operator<< (std::ostream &out, const mat2 &m)
	output operator
std::ostream &	operator<< (std::ostream &out, const mat2f &m)
	output operator
mat3	operator+ (const mat3 &m1, const mat3 &m2)
	addition of two matrices
mat3	operator* (const mat3 &m1, const mat3 &m2)
	multiplication of two matrices
bool	operator== (const mat3 &a, const mat3 &b)
	comparison
bool	operator!= (const mat3 &a, const mat3 &b)
	negated comparison
vec3	operator* (const mat3 &m, const vec3 &v)
	right-hand side matrix/vector multiplication
std::ostream &	operator<< (std::ostream &out, const mat3 &m)
	output operator
std::ostream &	operator<< (std::ostream &out, const mat3f &m)
	output operator
mat4	operator+ (const mat4 &m1, const mat4 &m2)
	addition of two matrices
mat4	operator* (const mat4 &m1, const mat4 &m2)
	multiplication of two matrices
bool	operator== (const mat4 &a, const mat4 &b)
	comparison
bool	operator!= (const mat4 &a, const mat4 &b)
	negated comparison
mat4	scale (const mat4 &m, const vec4 &c)
	inline scale
mat4	scale (const mat4 &m, double s, double t, double r, double w=1)
	inline scale
mat4	scale (const mat4 &m, double s, double w=1)
	inline scale
mat4	translate (const mat4 &m, const vec4 &v)
	inline translate
mat4	translate (const mat4 &m, double x, double y, double z, double w=1)
	inline translate
mat4	rotate (const mat4 &m, double angle, const vec3 &v)
	inline rotate
mat4	rotate (const mat4 &m, double angle, double vx, double vy, double vz)
	inline rotate
mat4	rotate (const mat4 &m, const vec3 &from, const vec3 &to)
	inline rotate
double	determinant (const mat4 &m)
	inline determinant
mat4	transpose (const mat4 &m)
	inline transpose
mat4	inverse (const mat4 &m)
	inline inverse
mat4	inverse_transpose (const mat4 &m)
	inline inverse transpose
vec4	operator* (const mat4 &m, const vec4 &v)
	right-hand side matrix/vector multiplication
std::ostream &	operator<< (std::ostream &out, const mat4 &m)
	output operator
std::ostream &	operator<< (std::ostream &out, const mat4f &m)
	output operator
quat	operator+ (const quat &a, const quat &b)
	addition of two quaternions
quat	operator- (const quat &a, const quat &b)
	subtraction of two quaternions
quat	operator* (const double a, const quat &b)
	left-hand side scalar multiplication
quat	operator* (const quat &a, const double b)
	right-hand side scalar multiplication
quat	operator- (const quat &r)
	conjugation of a quaternion
quat	operator* (const quat &a, const quat &b)
	multiplication of two quaternions
vec3	operator* (const quat &r, const vec3 &v)
	right-hand side vector multiplication with normalized quaternion
std::ostream &	operator<< (std::ostream &out, const quat &r)
	output operator
void	glslmath::print (const char *s="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (std::string s, std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (char c, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (int v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (unsigned int v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (double v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec2 v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec2f v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec3 v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec3f v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec4 v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (vec4f v, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat2 m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat2f m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat3 m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat3f m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat4 m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (mat4f m, std::string name="", std::string prefix="", int space=13, std::ostream &out=std::cout)
	pretty print
void	glslmath::print (quat q, std::string name="", std::string prefix="", std::ostream &out=std::cout)
	pretty print
vec3	glslmath::hsv2rgb (double hue, double sat, double val)
	hsv to rgb conversion
vec3	glslmath::rgb2hsv (double r, double g, double b)
	rgb to hsv conversion
vec3	glslmath::hsv2rgb (vec3 hsv)
	hsv to rgb conversion
vec3	glslmath::rgb2hsv (vec3 rgb)
	rgb to hsv conversion
unsigned int	glslmath::gcd (unsigned int a, unsigned int b)
	greatest common divisor
unsigned int	glslmath::lcm (unsigned int a, unsigned int b)
	smallest common multiple
double	glslmath::distance2ray (vec3 p, vec3 o, vec3 d)
	calculate the distance of a point p from a ray
double	glslmath::distance2ray2 (vec3 p, vec3 o, vec3 d)
	calculate the squared distance of a point p from a ray
double	glslmath::distance2line (vec3 p, vec3 a, vec3 b)
	calculate the distance of a point p from a line segment between vectors a and b
double	glslmath::distance2line2 (vec3 p, vec3 a, vec3 b)
	calculate the squared distance of a point p from a line segment between vectors a and b
void	glslmath::merge_spheres (vec3 &center0, double &radius0, const vec3 &center1, const double radius1)
	merge two spheres
double	glslmath::intersect_ray_unitsphere (vec3 p, vec3 d)
	ray/unitsphere intersection
double	glslmath::intersect_ray_ellipsoid (vec3 p, vec3 d, vec3 o, double r1, double r2, double r3)
	ray/ellipsoid intersection
double	glslmath::intersect_ray_plane (vec3 p, vec3 d, vec3 o, vec3 n)
	ray/plane intersection
int	glslmath::intersect_ray_triangle (const vec3 &o, const vec3 &d, const vec3 &v0, const vec3 &v1, const vec3 &v2, vec3 &tuv)
	Moeller-Trumbore ray/triangle intersection.
double	glslmath::ray_triangle_dist (const vec3 &o, const vec3 &d, const vec3 &v1, const vec3 &v2, const vec3 &v3)
	calculate hit distance on ray to triangle
int	glslmath::itest_point_sphere (const vec3 &p, const vec3 &b, const double r2)
	geometric point/sphere intersection test
int	glslmath::itest_ray_sphere (const vec3 &o, const vec3 &d, const vec3 &b, const double r2)
	geometric ray/sphere intersection test
int	glslmath::itest_cone_sphere (const vec3 &o, const vec3 &d, double cone, const vec3 &b, const double r)
	geometric cone/sphere intersection test
int	glslmath::itest_ray_bbox (const vec3 &o, const vec3 &d, const vec3 &b, const vec3 &r)
	geometric ray/bbox intersection test
int	glslmath::itest_plane_sphere (const vec3 &o, const vec3 &n, const double radius, const vec3 &b, const double r2)
	geometric plane/sphere intersection test
int	glslmath::vtest_plane_point (const vec3 &o, const vec3 &n, const vec3 &point)
	point visibility test
int	glslmath::vtest_plane_sphere (const vec3 &o, const vec3 &n, const vec3 &center, double radius)
	bounding sphere visibility test
int	glslmath::vtest_plane_bbox (const vec3 &o, const vec3 &n, const vec3 &center, const vec3 &extent)
	bounding box visibility test

Detailed Description

GLSLmath header
