glvertex_api.h File Reference

#include "glvertex_core.h"
#include <time.h>

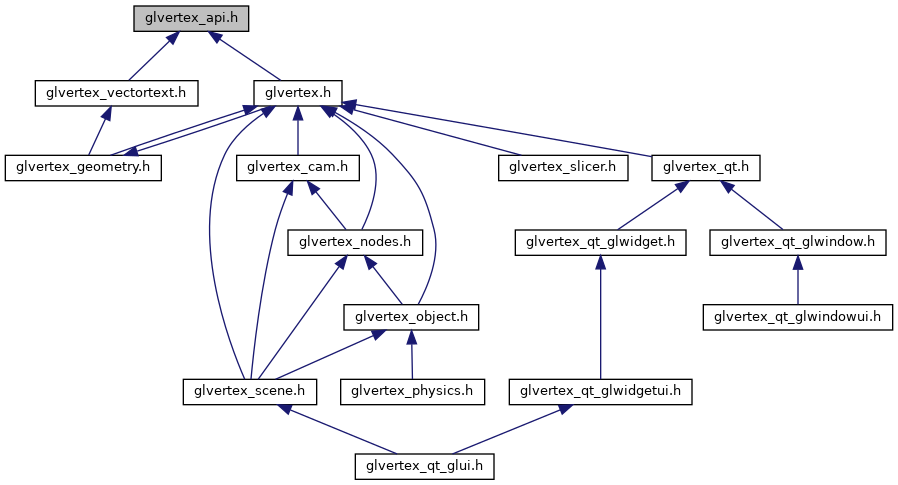

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	lglPushMatrixScoped()   lglScopedMatrixStack __lglPushMatrixScoped__
	scoped replacement for lglPushMatrix/lglPopMatrix pairs
#define	lglRandom()   drand48()
	random macro
#define	lglSeed()   srand48((unsigned int)time(NULL))
	seed macro
#define	LGL_WARN(s)   lglWarn(std::string(s)+" @ "+__FILE__+":"+glslmath::to_string(__LINE__))
	warning macro that outputs the file name and the line number of the occurrence
#define	LGL_ERROR(s)   lglError(std::string(s)+" @ "+__FILE__+":"+glslmath::to_string(__LINE__))
	error macro that outputs the file name and the line number of the occurrence

Functions
void	lglBegin (lgl_primitive_enum primitive)
	begin vertex series (as defined by OpenGL 1.2)
void	lglVertex (const vec4 &v)
	specify vertex (as defined by OpenGL 1.2)
void	lglVertex (double x, double y, double z, double w=1)
	specify vertex (as defined by OpenGL 1.2)
void	lglColor (const vec4f &c)
	specify vertex color attribute (as defined by OpenGL 1.2)
void	lglColor (float r, float g, float b, float a=1)
	specify vertex color attribute (as defined by OpenGL 1.2)
void	lglNormal (const vec3f &n)
	specify vertex normal attribute (as defined by OpenGL 1.2)
void	lglNormal (float x, float y, float z)
	specify vertex normal attribute (as defined by OpenGL 1.2)
void	lglTexCoord (const vec4f &t)
	specify vertex texture coordinate attribute (as defined by OpenGL 1.2)
void	lglTexCoord (float s, float t=0, float r=0, float w=1)
	specify vertex texture coordinate attribute (as defined by OpenGL 1.2)
void	lglEnd ()
	end vertex series (as defined by OpenGL 1.2)
void	lglMatrixMode (lgl_matrixmode_enum mode=LGL_MODELVIEW)
	specify matrix mode (as defined by OpenGL 1.2)
void	lglLoadIdentity ()
	load identity matrix (as defined by OpenGL 1.2)
void	lglLoadMatrix (const mat4 &matrix)
	load matrix (as defined by OpenGL 1.2)
void	lglMultMatrix (const mat4 &matrix)
	multiply with matrix (as defined by OpenGL 1.2)
void	lglPushMatrix ()
	push matrix (as defined by OpenGL 1.2)
void	lglPopMatrix ()
	pop matrix (as defined by OpenGL 1.2)
void	lglScale (const vec4 &c)
	multiply with scale matrix (as defined by OpenGL 1.2)
void	lglScale (double s, double t, double r, double w=1)
	multiply with scale matrix (as defined by OpenGL 1.2)
void	lglScale (double s, double w=1)
	multiply with scale matrix (as defined by OpenGL 1.2)
void	lglTranslate (const vec4 &v)
	multiply with translation matrix (as defined by OpenGL 1.2)
void	lglTranslate (double x, double y, double z, double w=1)
	multiply with translation matrix (as defined by OpenGL 1.2)
void	lglRotate (double angle, const vec3 &v)
	multiply with rotation matrix (as defined by OpenGL 1.2)
void	lglRotate (double angle, double vx, double vy, double vz)
	multiply with rotation matrix (as defined by OpenGL 1.2)
void	lglOrtho (double left, double right, double bottom, double top, double nearp=-1, double farp=1)
	multiply with orthgraphic matrix (as defined by OpenGL 1.2)
void	lglFrustum (double left, double right, double bottom, double top, double nearp, double farp)
	multiply with frustum matrix (as defined by OpenGL 1.2)
void	lglPerspective (double fovy, double aspect, double nearp, double farp)
	multiply with perspective matrix (as defined by OpenGL 1.2)
void	lglLookAt (const vec3 &eye, const vec3 &at, const vec3 &up=vec3(0, 1, 0))
	multiply with lookat matrix (as defined by OpenGL 1.2)
void	lglLookAt (double eye_x, double eye_y, double eye_z, double at_x, double at_y, double at_z, double up_x=0, double up_y=1, double up_z=0)
	multiply with lookat matrix (as defined by OpenGL 1.2)
void	lglViewport (int ax, int ay, int bx, int by)
	specify viewport (as defined by OpenGL 1.2)
void	lglClearColor (float w=0, float a=1)
	specify clear color (as defined by OpenGL 1.2)
void	lglClearColor (float r, float g, float b, float a=1)
	specify clear color (as defined by OpenGL 1.2)
void	lglClear (GLuint bits=GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT)
	clear color and depth buffer (as defined by OpenGL 1.2)
void	lglClipPlane (vec4 equation=vec4(0, 0, 0, 0), unsigned int n=0, bool camera_plane=false)
	specify clip plane (as defined by OpenGL 1.2)
void	lglClipPlane (double a, double b, double c, double d, unsigned int n=0, bool camera_plane=false)
	specify clip plane (as defined by OpenGL 1.2)
void	lglClipPlane (vec3 point, vec3 normal, unsigned int n=0, bool camera_plane=false)
	specify clip plane (as defined by OpenGL 1.2)
void	lglFog (float density=0.0f, vec4f color=vec4f(1))
	specify fog (as defined by OpenGL 1.2)
void	lglLineWidth (float width=1.0f)
	specify line width (as defined by OpenGL 1.2)
void	lglPolygonMode (lgl_polygonmode_enum mode)
	specify polygon mode (as defined by OpenGL 1.2)
std::string	lglGetError ()
	get error string (as defined by OpenGL 1.2)
vec4	lglGetColor ()
	get actual color
void	lglAttribute (const vec4f &a, unsigned int n=0)
	specify vertex attribute
void	lglAttribute (float x, float y, float z, float w=1.0f, unsigned int n=0)
	specify vertex attribute
lgl_matrixmode_enum	lglGetMatrixMode ()
	get actual matrix mode
mat4	lglGetMatrix ()
	get actual matrix
mat4	lglGetProjectionMatrix ()
	get actual projection matrix
mat4	lglGetModelViewMatrix ()
	get actual modelview matrix
mat4	lglGetInverseModelViewMatrix ()
	get inverse of modelview matrix
mat4	lglGetInverseTransposeModelViewMatrix ()
	get inverse transpose of modelview matrix
mat4	lglGetModelViewProjectionMatrix ()
	get combined modelview and projection matrix
mat4	lglGetTextureMatrix ()
	get texture matrix
void	lglRotateX (double angle)
	multiply with rotation matrix (rotation about x-axis)
void	lglRotateY (double angle)
	multiply with rotation matrix (rotation about y-axis)
void	lglRotateZ (double angle)
	multiply with rotation matrix (rotation about z-axis)
void	lglParallel (const vec3 &p, const vec3 &n, const vec3 &d)
	multiply with parallel projection matrix
void	lglProjection ()
	reset the actual projection matrix
void	lglProjection (const mat4 &projection)
	set the actual projection matrix
void	lglProjection (double left, double right, double bottom, double top, double nearp, double farp)
	set the actual projection matrix
void	lglProjection (double fovy, double aspect, double nearp, double farp)
	set the actual projection matrix
double	getFovy ()
	get fovy parameter for last projection transformation
double	getAspect ()
	get aspect parameter for last projection transformation
double	getNear ()
	get near parameter for last projection transformation
double	getFar ()
	get far parameter for last projection transformation
void	lglModelView ()
	reset the actual modelview matrix
void	lglModelView (const mat4 &modelview)
	set the actual modelview matrix
void	lglView (const vec3 &eye, const vec3 &at, const vec3 &up=vec3(0, 1, 0))
	set the actual modelview matrix
void	lglView (double eye_x, double eye_y, double eye_z, double at_x, double at_y, double at_z, double up_x=0, double up_y=1, double up_z=0)
	set the actual modelview matrix
vec3	getEye ()
	get eye point for last lookat transformation
vec3	getLookAt ()
	get lookat point for last lookat transformation
vec3	getUp ()
	get up vector for last lookat transformation
void	lglManip (bool on=true)
	enable or disable the manipulator matrix
void	lglManip (const mat4 &manip)
	update the manipulator matrix by multiplying it with a custom matrix
void	lglManip (double focus, double angle, double tilt, double zoom)
	update the manipulator matrix by applying a rotation about a focus point and a zoom factor
void	lglManip (double dx, double dy, double zoom=1)
	update the manipulator matrix by applying a screen-space delta
void	lglManip (vec2 delta, double zoom=1)
	update the manipulator matrix by applying a screen-space delta
void	lglResetManip ()
	reset the manipulator matrix
mat4	lglGetManip ()
	get the manipulator matrix
bool	lglIsManipApplied ()
	is the manipulator matrix applied?
mat4	lglGetInverseTransposeManip ()
	get the inverse transpose of the manipulator matrix
void	lglModel (const mat4 &model)
	set the vbo modeling matrix
mat4	lglGetModelMatrix ()
	get the vbo modeling matrix
mat4	lglGetInverseTransposeModelMatrix ()
	get the inverse transpose of the vbo modeling matrix
void	lglTex (const mat4 &tex)
	set the vbo texturing matrix
void	lglTex (const vec4 &scale, const vec4 &offset)
	set the vbo texturing matrix
mat4	lglGetTexMatrix ()
	get the vbo texturing matrix
void	lglLight (vec4f light=vec4f(0, 0, 1, 0), bool camera_light=true, vec3f ka=vec3f(0.1f), vec3f kd=vec3f(0.7f), vec3f ks=vec3f(0.2f), vec3f Ia=vec3f(1), vec3f Id=vec3f(1), vec3f Is=vec3f(1), float exponent=30, vec3f falloff=vec3f(1, 0, 0))
	specify lighting parameters
void	lglInitializeOpenGL (float r=0, float g=0, float b=0, float a=1, bool ztest=true, bool culling=false)
	initialize OpenGL state (clear color, depth test, back-face culling)
void	lglRGBAWrite (bool r=true, bool g=true, bool b=true, bool a=true)
	change OpenGL state (rgba write)
bool	lglGetRGBAWrite ()
	get OpenGL state (rgba write)
void	lglZWrite (bool on=true)
	change OpenGL state (depth write)
bool	lglGetZWrite ()
	get OpenGL state (depth write)
void	lglDepthTest (bool on=false)
	change OpenGL state (depth test)
bool	lglGetDepthTest ()
	get OpenGL state (depth test)
void	lglBackFaceCulling (bool on=true)
	change OpenGL state (back-face culling)
bool	lglGetBackFaceCulling ()
	get OpenGL state (back-face culling)
void	lglBlendMode (lgl_blendmode_enum mode)
	change OpenGL state (blending)
bool	lglGetBlending ()
	get OpenGL state (blending)
lgl_blendmode_enum	lglGetBlendMode ()
	get OpenGL state (blend mode)
void	lglAlphaTest (bool on=false, float value=0.0f, bool greater=true, bool equal=false)
	change OpenGL state (alpha test)
bool	lglGetAlphaTest ()
	get OpenGL state (alpha test)
float	lglGetAlphaTestValue ()
	get OpenGL state (alpha test value)
bool	lglGetAlphaTestGreater ()
	get OpenGL state (alpha test comparison mode)
bool	lglGetAlphaTestEqual ()
	get OpenGL state (alpha test equality mode)
bool	lglGetClipPlane (unsigned int n=0)
	get OpenGL state (clip plane)
vec4	lglGetClipPlaneEquation (unsigned int n=0)
	get OpenGL state (clip plane equation)
vec4	lglGetClipPlaneEquation (vec3 point, vec3 normal)
	compute OpenGL parameters (clip plane equation)
bool	lglGetFog ()
	get OpenGL state (fog)
float	lglGetFogDensity ()
	get OpenGL state (fog density)
vec4f	lglGetFogColor ()
	get OpenGL state (fog color)
float	lglGetLineWidth ()
	get OpenGL state (line width)
void	lglTogglePolygonMode ()
	toggle OpenGL state (polygon mode)
lgl_polygonmode_enum	lglGetPolygonMode ()
	get OpenGL state (polygon mode)
void	lglInterlacingMode (lgl_interlacing_enum mode)
	change OpenGL state (interlacing mode)
void	lglComplementaryInterlacingMode (lgl_interlacing_enum mode)
	change OpenGL state (complementary interlacing mode)
lgl_interlacing_enum	lglGetInterlacingMode ()
	get OpenGL state (interlacing mode)
GLuint	lglSupportsGLSL ()
	get GLSL support
std::string	lglGetGLSLVersionString ()
	get GLSL version string
std::string	lglPlainGLSLVertexShader ()
	get the LGL plain GLSL vertex shader
std::string	lglPlainGLSLFragmentShader ()
	get the LGL plain GLSL fragment shader
std::string	lglPlainGLSLProgram ()
	get the combined LGL plain GLSL program
std::string	lglBasicGLSLVertexShader (bool colors=false, bool normals=false, bool texcoords=false)
	get the LGL default vertex shader
std::string	lglBasicGLSLFragmentShader (bool colors=false, bool normals=false, bool texcoords=false, bool tex3D=false)
	get the LGL default fragment shader
GLuint	lglCompileGLSLVertexShader (std::string shader)
	compile GLSL vertex shader
GLuint	lglCompileGLSLFragmentShader (std::string shader)
	compile GLSL fragment shader
GLuint	lglLinkGLSLProgram (GLuint vertex_shader_id, GLuint fragment_shader_id, GLuint custom_shader_program=0)
	link GLSL program
GLuint	lglCompileGLSLProgram (std::string vertex_shader, std::string fragment_shader)
	compile GLSL program
GLuint	lglLoadGLSLProgram (const char *vertex_shader_file, const char *fragment_shader_file)
	load GLSL program
std::string	lglCombineGLSLProgram (const std::string &vertex_shader, const std::string &fragment_shader)
	combine GLSL program
bool	lglSplitGLSLProgram (std::string shader, std::string &vertex_shader, std::string &fragment_shader)
	split GLSL program
GLuint	lglCompileGLSLProgram (std::string shader)
	compile combined GLSL program
GLuint	lglLoadGLSLProgram (const char *shader_file)
	load combined GLSL program
void	lglDeleteGLSLShader (GLuint shader_id)
	delete GLSL shader
void	lglDeleteGLSLProgram (GLuint program)
	delete GLSL program
void	lglUseProgram (GLuint program, bool clear=true)
	use GLSL program
void	lglUseDefaultProgram (bool clear=true)
	use default GLSL program
void	lglReplaceDefaultProgram (GLuint program, bool colors=false, bool normals=true, bool texcoords=false, bool tex3D=false)
	replace default GLSL program
GLuint	lglGetProgram ()
	get actual GLSL program
GLuint	lglGetActiveProgram ()
	get active GLSL program
void	lglReuseProgram (GLuint program)
	reuse GLSL program
unsigned int	lglUniform (std::string uniform)
	specify GLSL program uniform (undefined)
unsigned int	lglUniformi (std::string uniform, int value)
	specify GLSL program uniform (integer)
void	lglUniformi (unsigned int index, int value)
	specify GLSL program uniform (integer, indexed)
unsigned int	lglUniformf (std::string uniform, double value)
	specify GLSL program uniform (float)
void	lglUniformf (unsigned int index, double value)
	specify GLSL program uniform (float, indexed)
unsigned int	lglUniformf (std::string uniform, double x, double y, double z, double w=1)
	specify GLSL program uniform (4xfloat)
void	lglUniformf (unsigned int index, double x, double y, double z, double w=1)
	specify GLSL program uniform (4xfloat, indexed)
unsigned int	lglUniformfv (std::string uniform, const vec2f &value)
	specify GLSL program uniform (vec2f)
void	lglUniformfv (unsigned int index, const vec2f &value)
	specify GLSL program uniform (vec2f, indexed)
unsigned int	lglUniformfv (std::string uniform, const vec3f &value)
	specify GLSL program uniform (vec3f)
void	lglUniformfv (unsigned int index, const vec3f &value)
	specify GLSL program uniform (vec3f, indexed)
unsigned int	lglUniformfv (std::string uniform, const vec4f &value)
	specify GLSL program uniform (vec4f)
void	lglUniformfv (unsigned int index, const vec4f &value)
	specify GLSL program uniform (vec4f, indexed)
unsigned int	lglUniformfv (std::string uniform, const mat2f &value)
	specify GLSL program uniform matrix (mat2f)
void	lglUniformfv (unsigned int index, const mat2f &value)
	specify GLSL program uniform matrix (mat2f, indexed)
unsigned int	lglUniformfv (std::string uniform, const mat3f &value)
	specify GLSL program uniform matrix (mat3f)
void	lglUniformfv (unsigned int index, const mat3f &value)
	specify GLSL program uniform matrix (mat3f, indexed)
unsigned int	lglUniformfv (std::string uniform, const mat4f &value)
	specify GLSL program uniform matrix (mat4f)
void	lglUniformfv (unsigned int index, const mat4f &value)
	specify GLSL program uniform matrix (mat4f, indexed)
unsigned int	lglSampler (std::string sampler, int value=0, bool warn=true)
	specify GLSL program uniform sampler
void	lglSampler (unsigned int index, int value=0, bool warn=true)
	specify GLSL program uniform sampler (indexed)
unsigned int	lglSampler2D (std::string sampler, GLuint texid2D, int value=0, bool warn=true)
	bind 2D sampler
void	lglSampler2D (unsigned int index, GLuint texid2D, int value=0, bool warn=true)
	bind 2D sampler (indexed)
unsigned int	lglSampler3D (std::string sampler, GLuint texid3D, int value=0, bool warn=true)
	bind 3D sampler
void	lglSampler3D (unsigned int index, GLuint texid3D, int value=0, bool warn=true)
	bind 3D sampler (indexed)
void	lglPrintUniforms ()
	print GLSL uniforms
void	lglLightDirection (vec3f light=vec3f(0, 0, 1), bool camera_light=true)
	set light direction
void	lglLightPosition (vec3f light=vec3f(0, 0, 0), bool camera_light=true)
	set light position
void	lglLightVector (vec4f light=vec4f(0, 0, 1, 0), bool camera_light=true)
	set light vector
vec4f	lglGetLightVector ()
	get light vector (in camera coordinates)
void	lglLightParameters (vec3f ka=vec3f(0.1f), vec3f kd=vec3f(0.7f), vec3f ks=vec3f(0.2f), vec3f Ia=vec3f(1), vec3f Id=vec3f(1), vec3f Is=vec3f(1), float exponent=30, vec3f falloff=vec3f(1, 0, 0))
	set light parameters
void	lglGetLightParameters (vec3f &ka, vec3f &kd, vec3f &ks, vec3f &Ia, vec3f &Id, vec3f &Is, float &exponent, vec3f &falloff)
	get light parameters
void	lglLightSourceParameters (vec3f Ia=vec3f(1), vec3f Id=vec3f(1), vec3f Is=vec3f(1), vec3f falloff=vec3f(1, 0, 0))
	set light source parameters
void	lglGetLightSourceParameters (vec3f &Ia, vec3f &Id, vec3f &Is, vec3f &falloff)
	get light source parameters
void	lglMaterialParameters (vec3f ka=vec3f(0.1f), vec3f kd=vec3f(0.7f), vec3f ks=vec3f(0.2f), float exponent=30)
	set material parameters
void	lglGetMaterialParameters (vec3f &ka, vec3f &kd, vec3f &ks, float &exponent)
	get material parameters
void	lglTexture2D (GLuint texid, bool owner=false)
	bind 2D texture
GLuint	lglGetTexture2D ()
	get 2D texture
void	lglTexture3D (GLuint texid, bool owner=false)
	bind 3D texture
GLuint	lglGetTexture3D ()
	get 3D texture
void	lglDeleteTexture ()
	delete any texture
void	lglTexCoordGen (lgl_texgenmode_enum mode=LGL_TEXGEN_LINEAR)
	enable texture coordinate generation
lgl_texgenmode_enum	lglGetTexCoordGen ()
	check for texture coordinate generation
void	lglColoring (bool on)
	enable coloring
bool	lglGetColoring ()
	check for coloring
void	lglLighting (bool on)
	enable lighting
bool	lglGetLighting ()
	check for lighting
void	lglTexturing (bool on)
	enable texturing
bool	lglGetTexturing ()
	check for texturing
void	lglDisableColoring (bool off)
	entirely disable vertex colors
void	lglDisableLighting (bool off)
	entirely disable vertex normals
void	lglDisableTexturing (bool off)
	entirely disable texture coordinates
void	lglRender (lglVBO *vbo, const GL *gl=&LGL)
	render vbo (by copying the global state)
void	lglRender (lglVBO &vbo, const GL *gl=&LGL)
	render vbo (by copying the global state)
void	lglCloneState (const GL *gl)
	clone state from vbo (coloring, lighting and texturing)
void	lglCloneState (const lglVBO *vbo)
	clone state from vbo (coloring, lighting and texturing)
void	lglCopyUniforms (const GL *gl, bool warn=false)
	copy uniforms from vbo
void	lglCopyUniforms (const lglVBO *vbo, bool warn=false)
	copy uniforms from vbo
unsigned char *	lglReadRGBPixels (int x, int y, int width, int height)
	read frame buffer
void	lglBeginRayCast (vec3 origin, vec3 direction, double mindist=0)
	begin ray casting in view coordinates
void	lglRayCast (lglVBO *vbo)
	cast a ray and intersect it with the transformed triangles contained in the vbo
LGL_VBO_TYPE *	lglEndRayCast ()
	end ray casting
double	lglGetRayCastDistance ()
	get distance to front-most hit point determined by ray casting
void	lglEnableViewCulling (int minsize=0)
	enable view culling
void	lglDisableViewCulling ()
	disable view culling
void	lglBeginExport (void(*callback)(LGL_VBO_TYPE *vbo, void *data), void *data, mat4 m=mat4(1))
	begin scene export
void	lglEndExport ()
	end scene export
int	lglGetGLVersion ()
	get OpenGL version
int	lglMapGL2GLSLVersion (int glversion)
	map gl version to glsl version
int	lglGetGLSLVersion ()
	get GLSL version
std::string	lglGetRenderer ()
	get OpenGL renderer
lgl_vendor_enum	lglGetVendor ()
	get OpenGL vendor
std::string	lglGetVendorName ()
	get OpenGL vendor name
void	lglMessage (std::string m)
	generate a status message
void	lglError (std::string e)
	generate an error message
void	lglWarning (std::string w)
	generate a warning message
void	lglFatal (std::string e)
	generate a non-recoverable error
std::string	lglGetWarning ()
	get warning message
void	lglVerbosity (lgl_verbosity_enum v)
	change verbosity level

Detailed Description

LGL immediate mode API (as specified by OpenGL 1.2 plus extensions)
